Name: Daylight HB4.5 UFO Motion Daylight Sensor 150W UFO High Bay 160LM/W IP66 ZIGBEE
Brand: DUALRAYS
SKU: DR-HB150-XGXP
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (165 reviews)
ISBN: 34526611

منزل المنتجات أوروبا مستودع تخزين

Daylight HB4.5 UFO Motion Daylight Sensor 150W UFO High Bay 160LM/W IP66 ZIGBEE

تفاصيل المنتج:

مكان المنشأ:	شنتشن، الصين
اسم العلامة التجارية:	DUALRAYS
إصدار الشهادات:	CE, ROHS,TUV
رقم الموديل:	DR-HB150-XGXP

شروط الدفع والشحن:

الحد الأدنى لكمية:	2 قطع
الأسعار:	Negotiable
تفاصيل التغليف:	حزمة Netural ، حزمة OEM / ODM متوفرة ، 2PCS / CTN
وقت التسليم:	5-15 يوم عمل
شروط الدفع:	ويسترن يونيون ، T / T ، L / C.
القدرة على العرض:	50000 قطعة / الشهر

اتصل

مفصلة وصف المنتج

Rated Power:	150W	Beam Angle:	60°/90°/120°
Input Voltage:	AC100~277V 50-60Hz	PF:	>0.95
IK:	IK08	UGR:	<25
تسليط الضوء:	HB4.5 150W UFO High Bay Lights,160LM/W 150W UFO High Bay , 160LM/W 150W UFO High Bay

Daylight HB4.5 UFO Motion daylight Sensor 150W UFO High Bay 160LM/W IP66 ZIGBEE

Features:

> Multiple Installations: Loop Hanging, Ceiling Mounting, Wall Mounting;

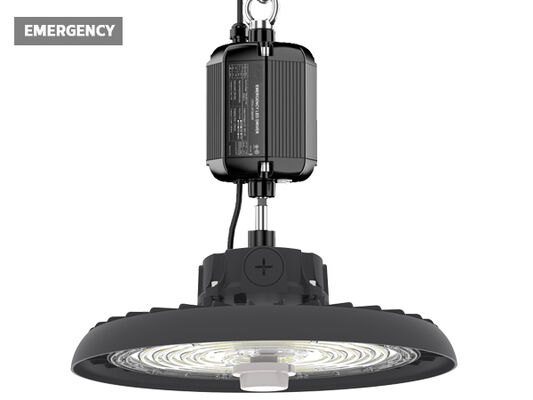

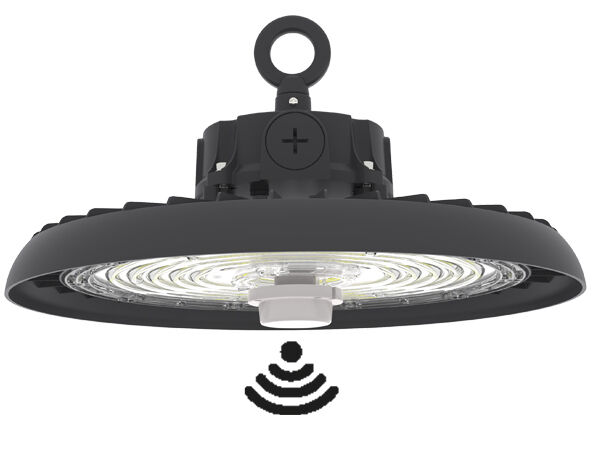

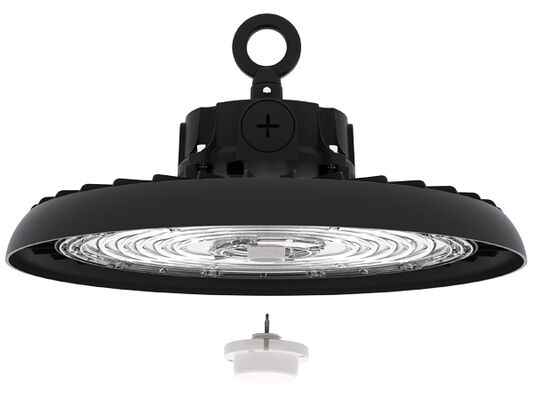

> Various intelligent control: 1-10V, Motion sensor,Daylight sensor,Zigbee and Emergency;

> L70/B20 @ 68.000h;

> High Brightness SMD2835 LEDs (1W), LIFUD / SOSEN Round/Rectangle Driver;
> IP66 / IK08 Protection;
> 60°/90° (with PC/Al Cover)/120°(with Al Refelctor) Reflector is Necessary;

Options:

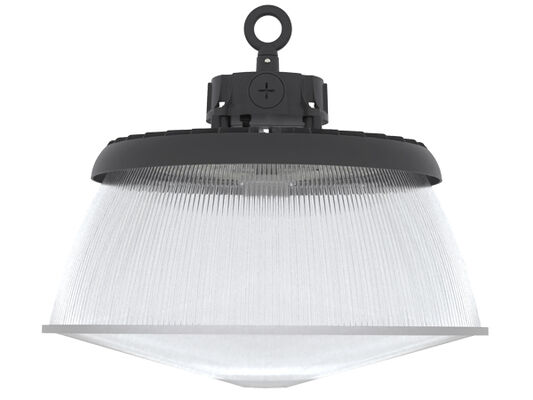

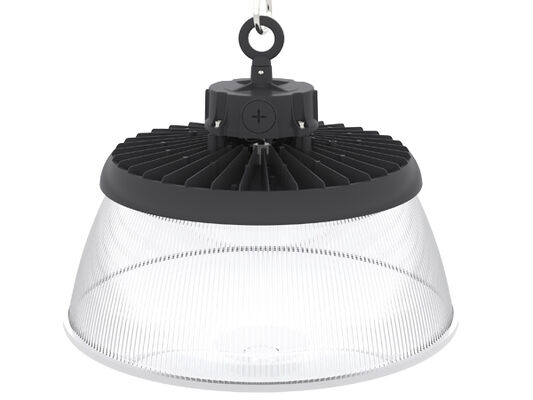

> Reflector : PC reflector / Al reflector;

> Lens : 60°/90° (with PC/Al Cover)/120°(with Al Refelctor) Reflector;

> Installation: Loop Hanging, Ceiling Mounting, Wall Mounting;

> Driver: LIFUD / SOSEN Round/Rectangle Driver

> Controls and Dimming: 1-10V, Motion sensor,Daylight sensor,Zigbee and Emergency;

Daylight HB4.5 UFO Motion Daylight Sensor 150W UFO High Bay 160LM/W IP66 ZIGBEE 0

Daylight HB4.5 UFO Motion Daylight Sensor 150W UFO High Bay 160LM/W IP66 ZIGBEE 1

Model No.	DR-HB100-XGXP	DR-HB150-XGXP	DR-HB200-XGXP
System Watts/W	100W	150W	200W
System Efficiency/LPW	140LPW / 160LPW Optional
Lumen Output/lm	14.000 / 16.000±5%	21.000 / 24.000±5%	28.000 / 32.000±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD2835 (1W)
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	60°/90°/120° Optional
UGR	<25
Surge Protection	3.75~4KV SPD built in Driver
LED Driver	LIFUD / SOSEN Round/Rectangle Driver
IP Rating	IP65
Dimming(Optional)	0/1-10V/Zigbee
Sensor(Optional)	Motion Sensor,Daylight Sensor

Daylight HB4.5 UFO Motion Daylight Sensor 150W UFO High Bay 160LM/W IP66 ZIGBEE 3

Daylight HB4.5 UFO Motion Daylight Sensor 150W UFO High Bay 160LM/W IP66 ZIGBEE 4

Daylight HB4.5 UFO Motion Daylight Sensor 150W UFO High Bay 160LM/W IP66 ZIGBEE 5

Daylight HB4.5 UFO Motion Daylight Sensor 150W UFO High Bay 160LM/W IP66 ZIGBEE 7

Packaging Information

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-HB100-CGXP	3.8	310310150	4.9	1PCS/CTN
DR-HB150-DGXP	4.1	310310150	5.4	1PCS/CTN
DR-HB200-DGXP	4.4	370370170	5.6	1PCS/CTN
